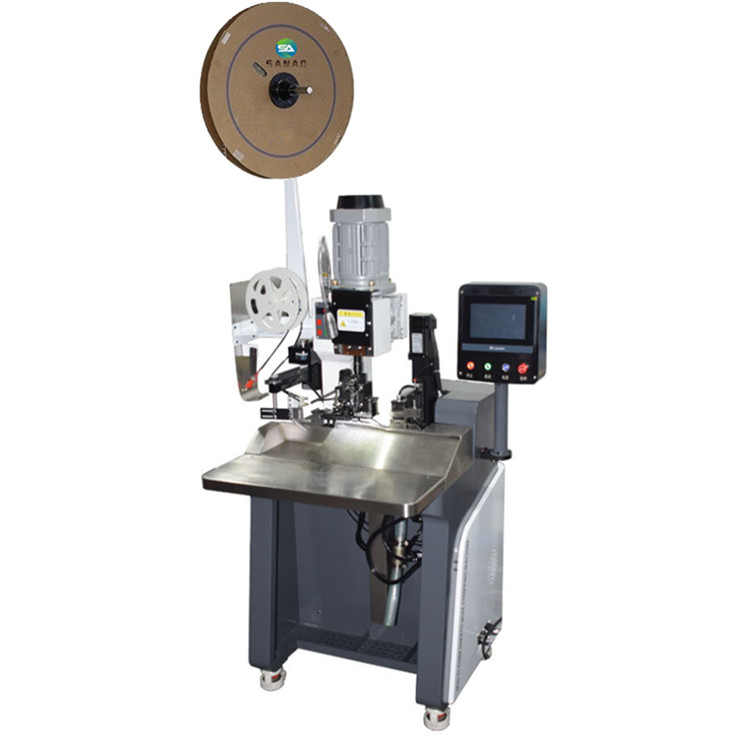

Electric sheath cable stripping and crimping machine

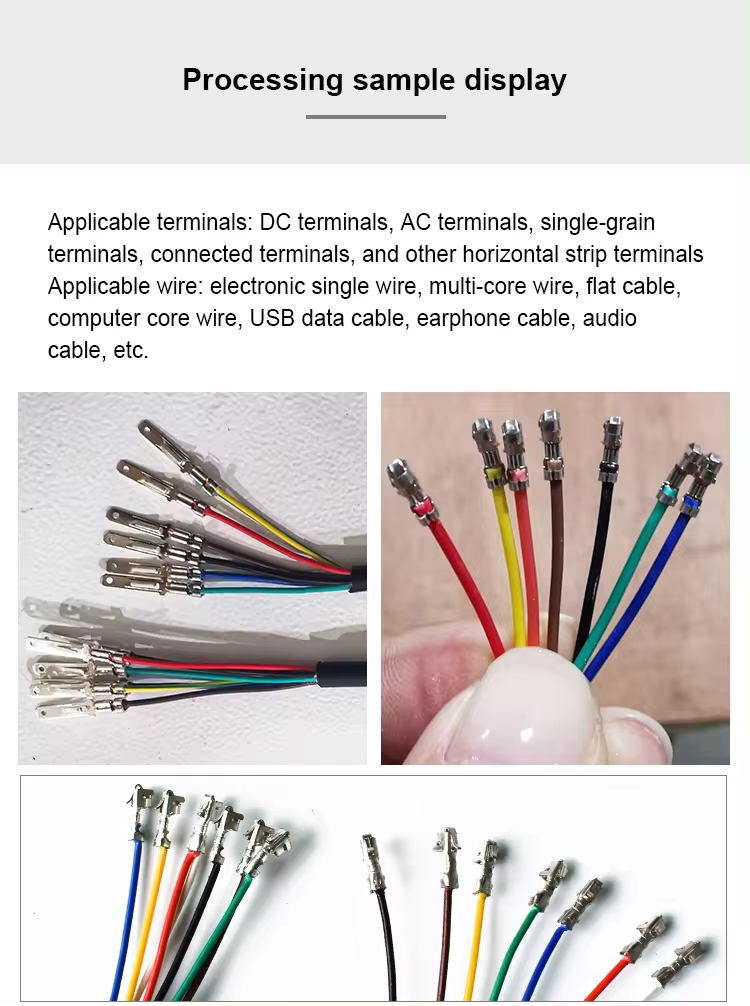

This machine is specially designed for sheath cable stripping and crimping machine, it can process up to 20pin wires. such as USB data cable, sheathed cable, flat cable, power cable, headphone cable and other kinds of products. You just need to put wire on the machine, it's stripping and termination can be completed in one time. Can effectively reduce the processing procedures, reduce the difficulty of work, improve work efficiency.

The workmanship of the whole machine is Hight precise, the translation, wire splitting, stripping and other mechanisms are driven by motors, displacement by servo motor drive, so the positioning is precise. The parameters such as stripping length, cutting depth, slitting length and crimping position can be set in the program without manual screws. The colour touch screen operator interface, the program memory function can save the processing parameters of different products in the database, and the corresponding processing parameters can be recalled with one key when changing products. The machine is also equipped with an automatic paper reel, terminal strip cutter and waste suction device, which can keep the working environment clean.

1、Sheath cable cut flush, peeling, terminal strip continuous crimping processing.
2、Displacement using servo motor drive, screw drive to improve accuracy, used to ensure high quality product requirements.
3、High precision applicator, the applicator adopts a bayonet design to support quick replacement.Just change the applicator for different terminal.
4、Multiple wires are automatically cut and aligned, stripped, riveted and pressed, and automatically picked up.
5.Wire stripping length, cutting depth, crimping position can be set directly on the touch screen, easy to adjust the parameters
