Max.70mm2 New energy cable Cutting and Stripping equipment Max.70mm2 New energy cable Cutting and Stripping equipment Max.70mm2 New energy cable Cutting and Stripping equipment

Max.70mm2 New energy cable Cutting and Stripping equipment

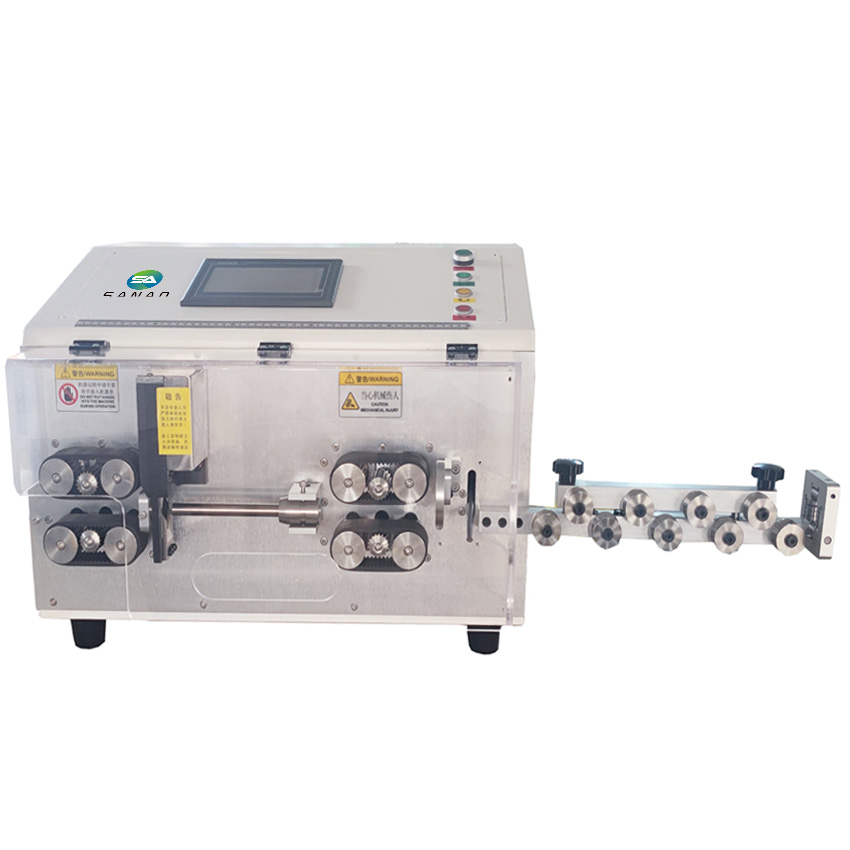

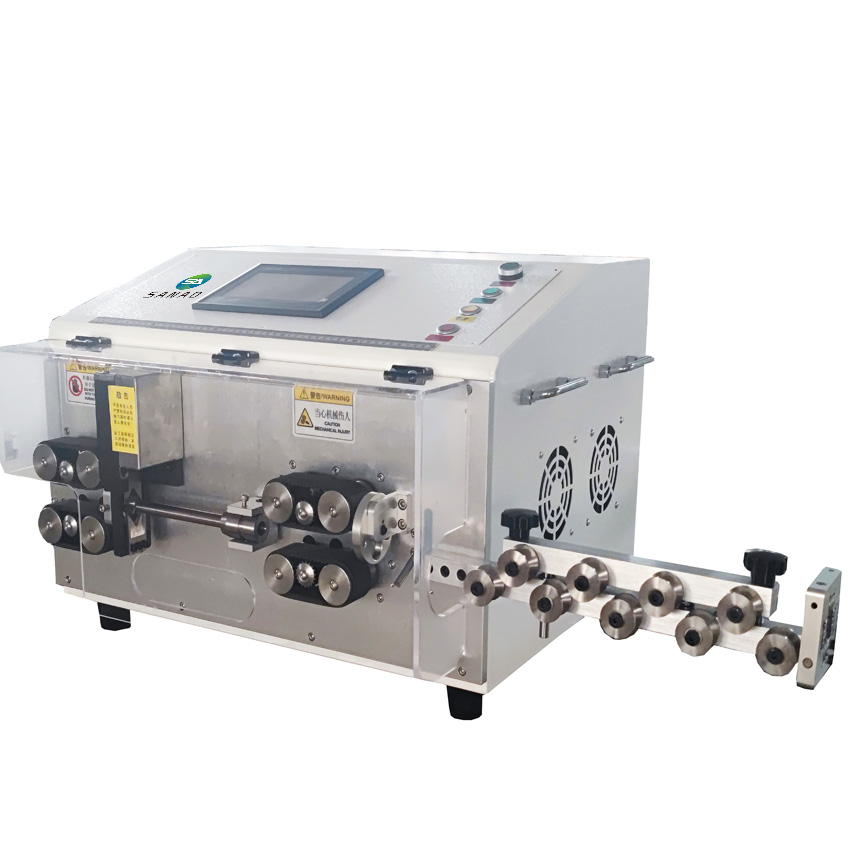

  • Model :SA-CW7000
  • Description: SA-CW7000 Processing wire range: Max.70mm2, The belt feeding system can ensure that the surface of the wire is undamaged,Color touch screen operation interface , parameter setting is intuitive and easy to understand,Total have 100 different program.
  • INQUIRY   EMAIL

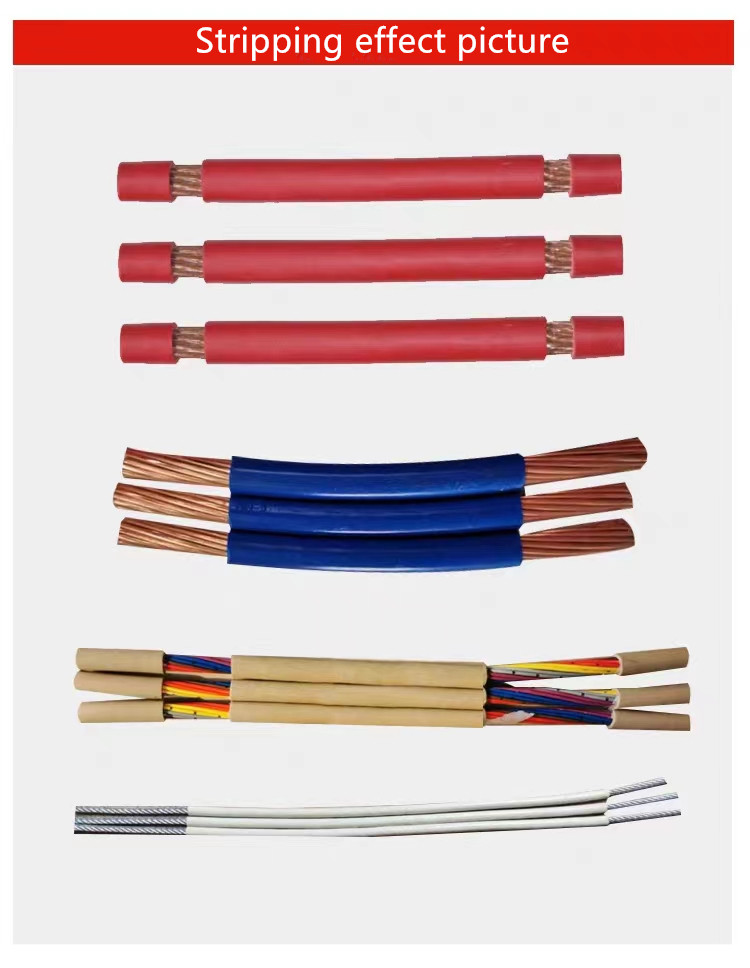

1. This machine adopts 12-wheel drive,The machine have dual sided pressure wheel, strong power and high accuracy stripping advantage, and The belt feeding system can ensure that the surface of the wire is undamaged. It is widely used in the processing of products such as military, medical, communication, power cables, sheathed wires, and soft and hard wires.

2. The tightening force of the inlet and outlet wheels can be directly set in the program, without the need to manually adjust the pressure of the wheels. The outlet wheel also has an automatic lifting function, greatly increasing the stripping length range of the wire head. The height of the outlet wheel can also be directly set in the program.

3.Color touch screen operation interface , parameter setting is intuitive and easy to understand , parameters such as cutting length , stripping length , twisting force , and crimping position can be directly setting one display . Machine can save program for different products, Next time ,directly choose the program directly to produce. Total have 100 different program.

4.Can be equipped with stripping and wire laying tools, cutting tools, and inkjet printers.

Machine Model

SA-CW7000

Wire range

1.5-70mm2

Cutting Length

0-100m

Stripping Length

Head 0-300mm; Tail 0-150mm

Conduit Diameter

20mm

Drive Method

12 wheels drive

power

800W

Wire types

Multi - strand copper wire, coaxial cable, sheath wire, etc

Blade material

Imported high speed steel

Production Rate

1500-2500pcs/h

Display Screen

7 inch touch screen

Wire Feed Method

Belt feeding wire, no indentation on cable

Memory function

Up to 100 groups of programs can be stored

Weight

105KG

Dimensions


700*640*480mm
