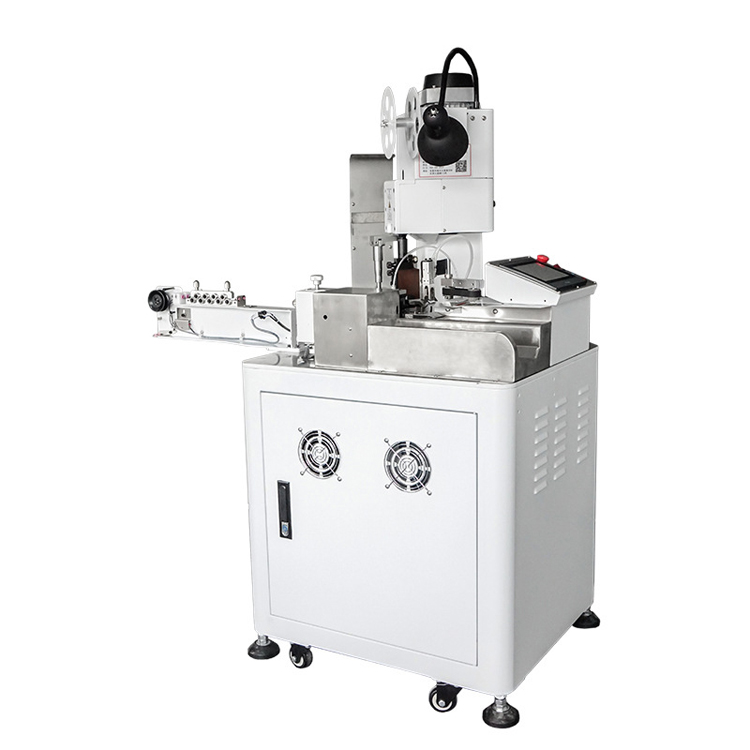

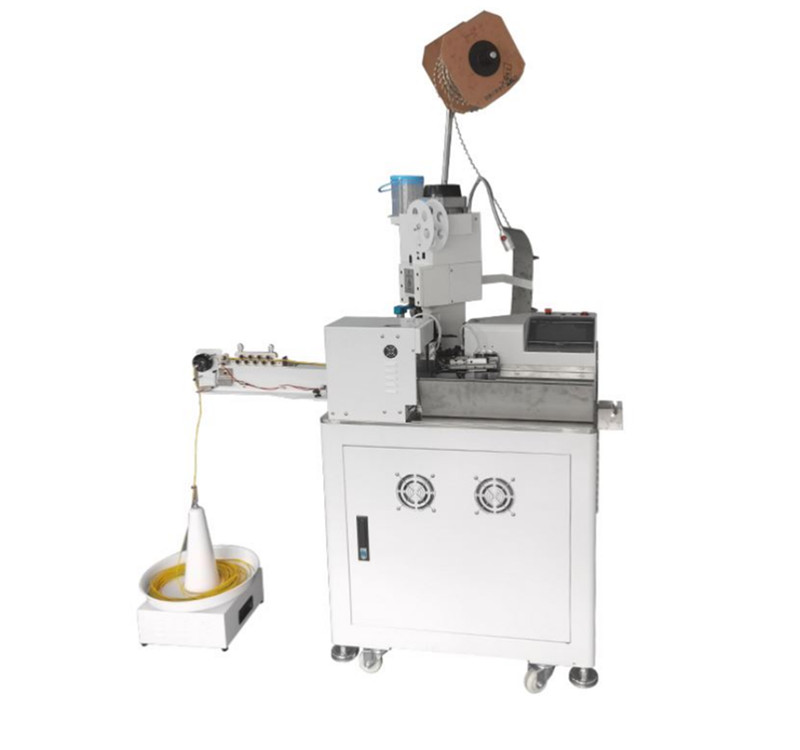

Full automatic wire cutting terminal crimping tin dip machine
Full automatic single /double Wire cutting and striping terminal crimping tin machine, single head automatic crimping terminal ,the other head stripping twisting tin dip machine for Copper wires. It’s Greatly Improved stripping speed and save labor cost.
1.Micro-computer controlled system, high accuracy wire cutting stripping.
2.Wire cutting, stripping and crimping are completed one time.
3.Fast speed, high efficiency, easy operation
4.Function: wire cutting, single-end stripping, double-end stripping, single-end twisting, 5.single-end crimping, multi-section stripping.
6.LCD screen, high-definition, easy to operate.
|
Model |
SA-CZ100 |
|
Product Features |

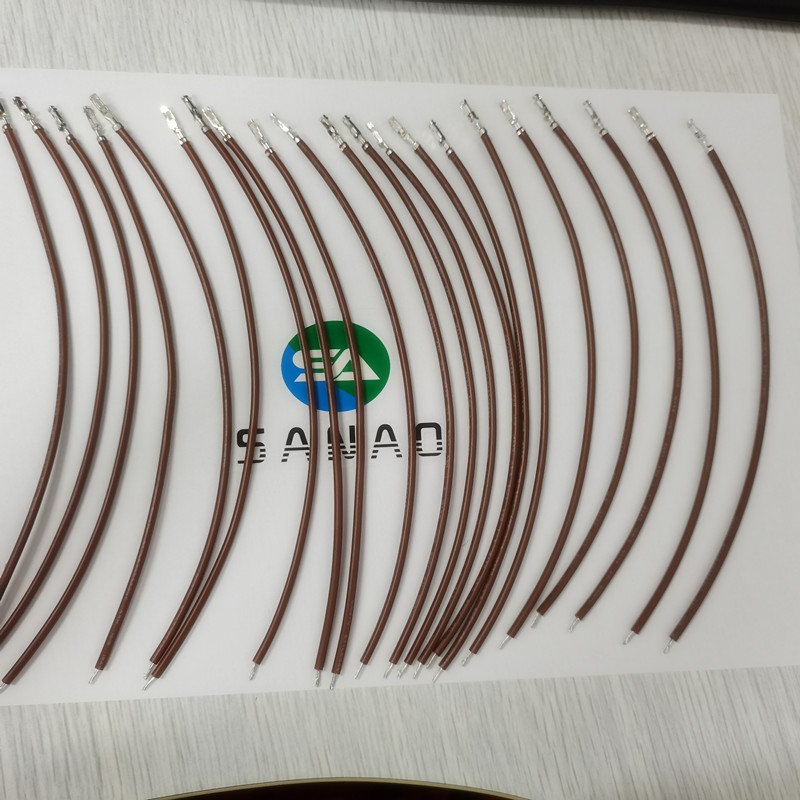

One end crimping , The other end twisting and tinning machine |
|
Available Wire Size |
2.5mm2 ( Single wire ) 18-28#（Double wire ） |
|
Cutting Length |
26mm~9900mm ( 20mm can be custom made ) |
|
Length Tolerance |
≥1m ,±0.002%*L |
|
Stripping Length |
0-20mm |
|
Twisting Length |
2-20mm |
|
Tinning Length |
2-20mm |
|
Machine Production Rate |
About 4200 pcs/h |
|
Detection Device |
Lack wire detection, Lack terminal detection, Crimp detection, Pressure detection |
|
Air Connection |
0.5-0.7MPa |
|
Power Supply |
110/220VAC,50/60Hz |
|
Weight |
About 260kg |
|
Dimensions |
130*60*200cm |
