Automatic strip cutting machine

Wire Stripping Machine for Large Cable 16-300MM2

Wire Stripping Machine for Large Cable 16-300MM2

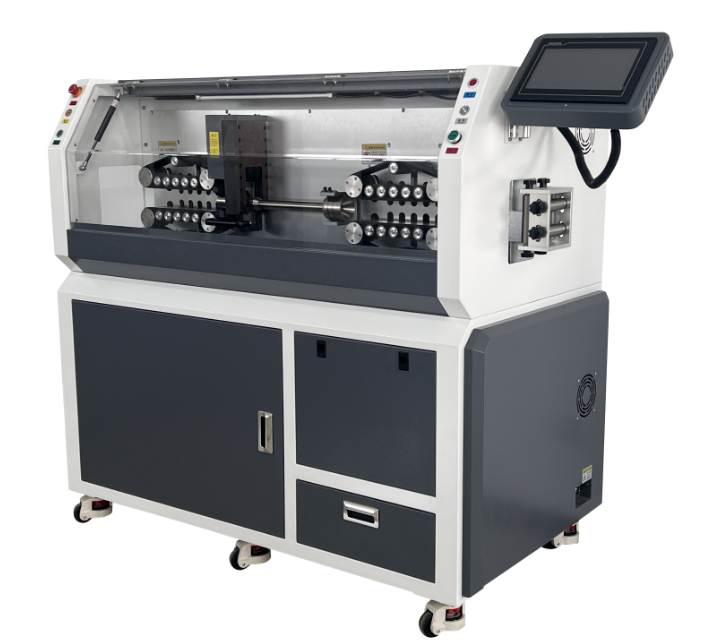

SA-CW3000
Description: SA-CW3000 is fully automatic computer wire stripper machine.suitable for peeling 16-300mm2 large wire.Peeling length Wire head 0-600mm, wire tail 0-400mm, depending on the wire material. It supports a maximum of 3 layers of stripping function.
INQUIRY EMAIL

Features of this model SA-CW3000:

1.This product is independently developed and features an intellectual property patent program. It is equipped with a 7-inch color touch screen and a high-speed motion control system, making it easy to operate and highly stable.

2. Belt feeding is adopted, which increases the contact area between the belt and the wire. The wire feeding is stable, the length is precise, and there are no indentations on the wire.

3. It is equipped with a large-capacity memory that can simultaneously store 200 sets of parameters, making operation convenient.

4. The distance between the front and rear rollers is controlled by a motor. Just input the wire diameter, and the operation is convenient.

5. Electric jumping conduit, with a longer wire stripping length at the rear wheel, the up and down jumping distance can be freely set, ensuring high stability.

The machine is fully driven by motors, with upper and lower pressure wheels on the lead screw. It does not require a source gas and has strong versatility!

Model	SA-CW3000
warranty	1Year
Applicable wire	16mm2-300mm2
Stripping length	0-500m
Catheter	inner hole is 25/30/35/41mm
Peeling length	wire end is 0-600mm,End of the line is 0-400mm, depending on the wire material. It supports a maximum of 3 layers of stripping function
Processing speed	500-1000 pieces per hour (depending on the wire material)
