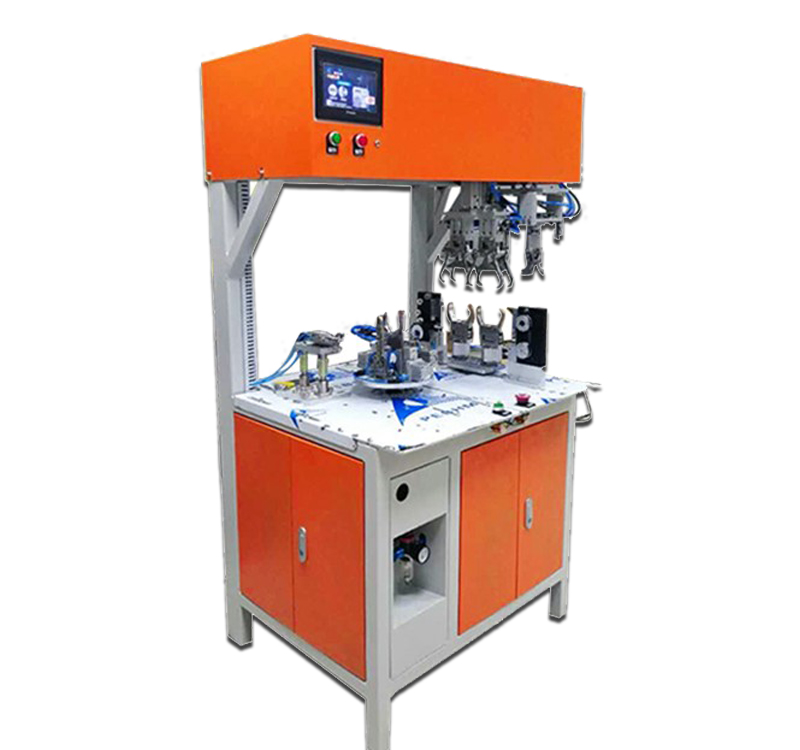

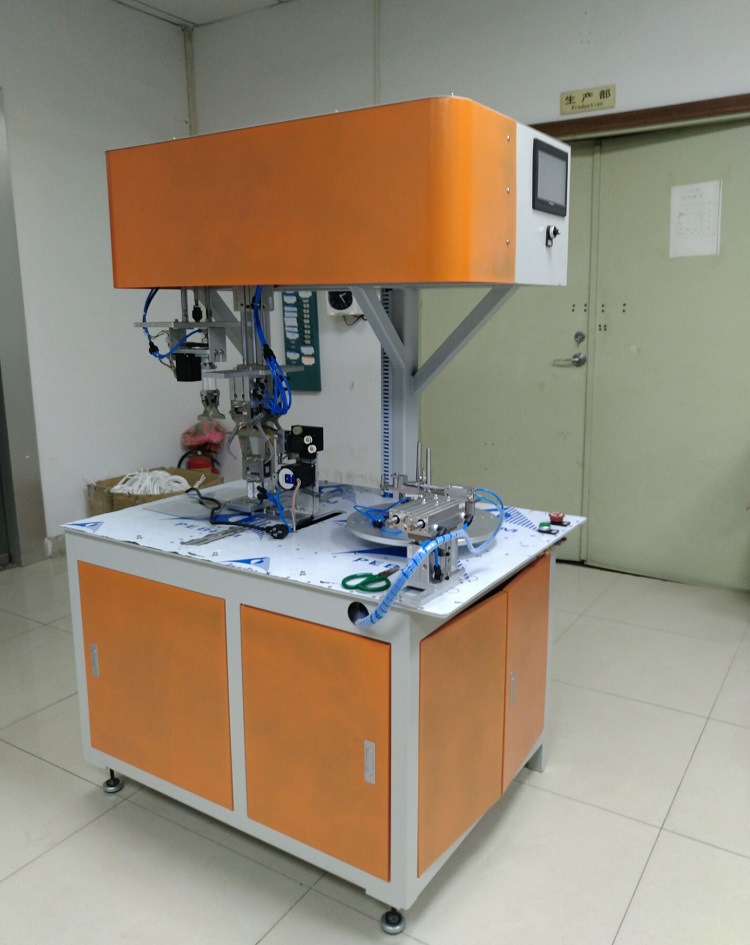

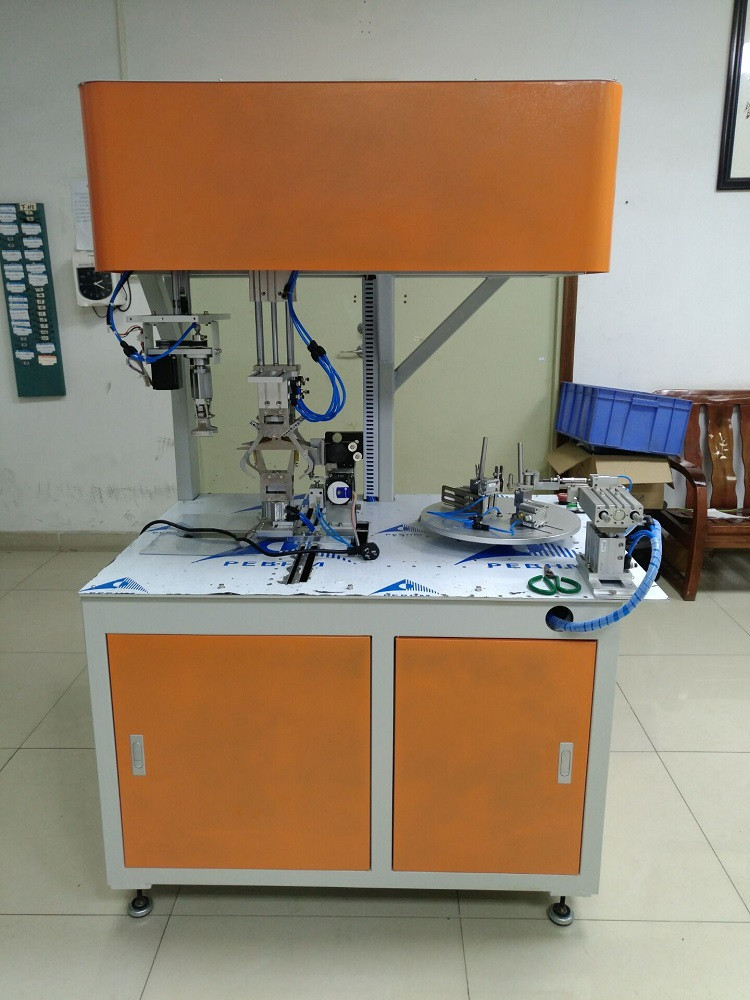

Automatic data cable coil winding binding machine for round shape

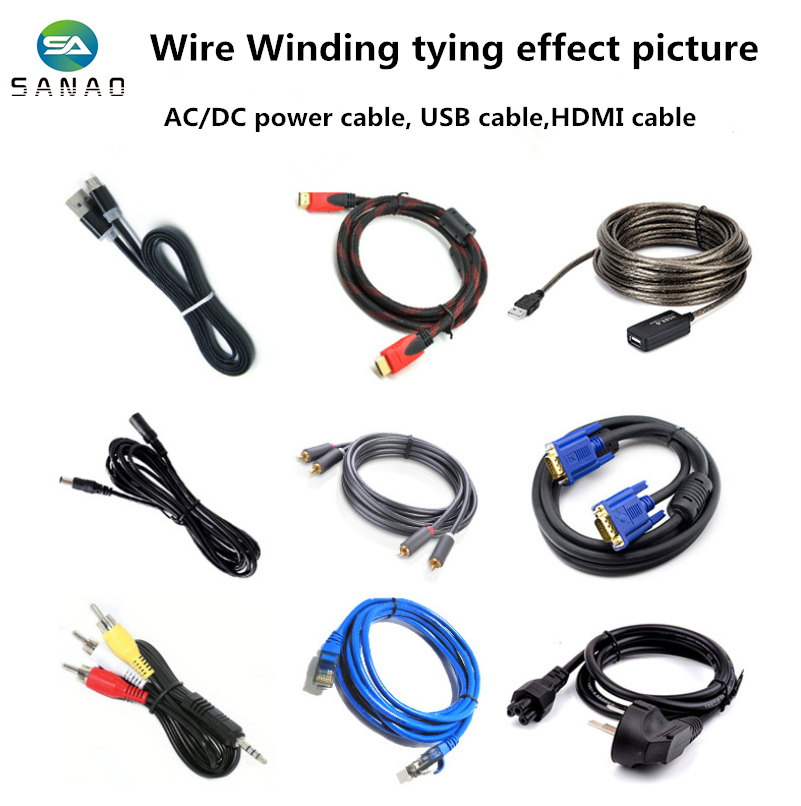

This machine suitable for automatic winding AC power cable, DC power core, USB data wire, video line, HDMI high-definition line and other transmission line, It’s Greatly Improved stripping speed and save labor cost
Features:
1.Apply to single-end / double- ends ,AC power cord,DC power cord , Video line,HDMI ,USB wires
2.Auto and fast binding after Stepping on foot switch ,
3.Wire length(Head length, Tail length,Total binding length) , coil number,speed,quantity can be set .
4.Easy to operate
5.Save labor cost and improve output.
6.Adopted PLC program control , 7 inches touch screen for setting parameters.
7.Provide personalized customization according to different requirements.
|
Model |
SA-BJ0 |
|
Finished Coil Type |
coil 0 shape, two cable tie tying |
|
Available Wire Dia |
≤Φ10mm (based on wire materials) |
|
Available Length |
≦ 6 m (based on wire materials) |
|
Winding Inner Dia |
80-180mm |
|
Reserved Head Length |
≤150mm |
|
Reserved Tail Length |
≤150mm |
|
Bundling Diameter |
≤45mm |
|
Production Rate |
≤ 1200pcs/h (based on wire materials) |
|
Air Connection |
0.4-0.55MPa |
|
Power Supply |
110/220VAC,50/60Hz |
|
Dimensions |
110*72*160cm |
