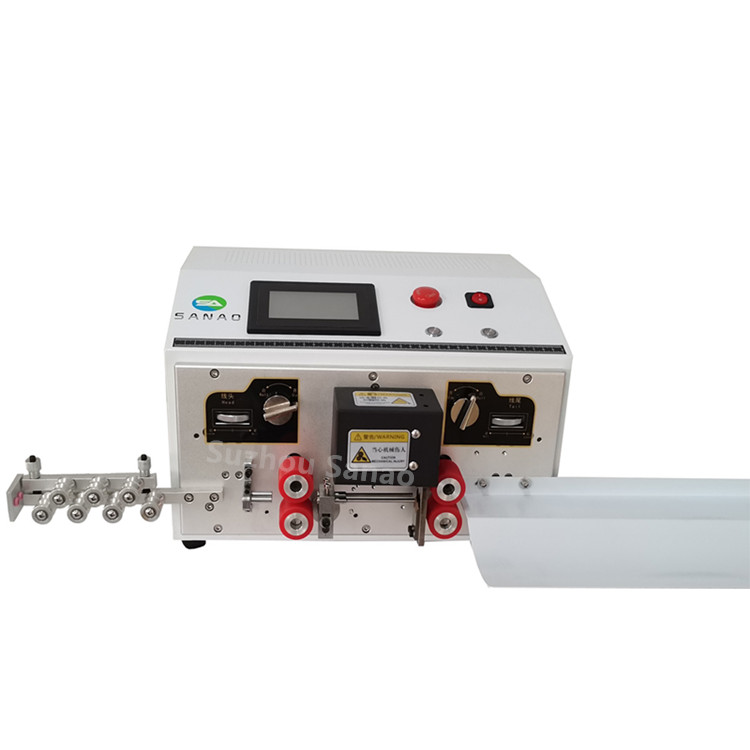

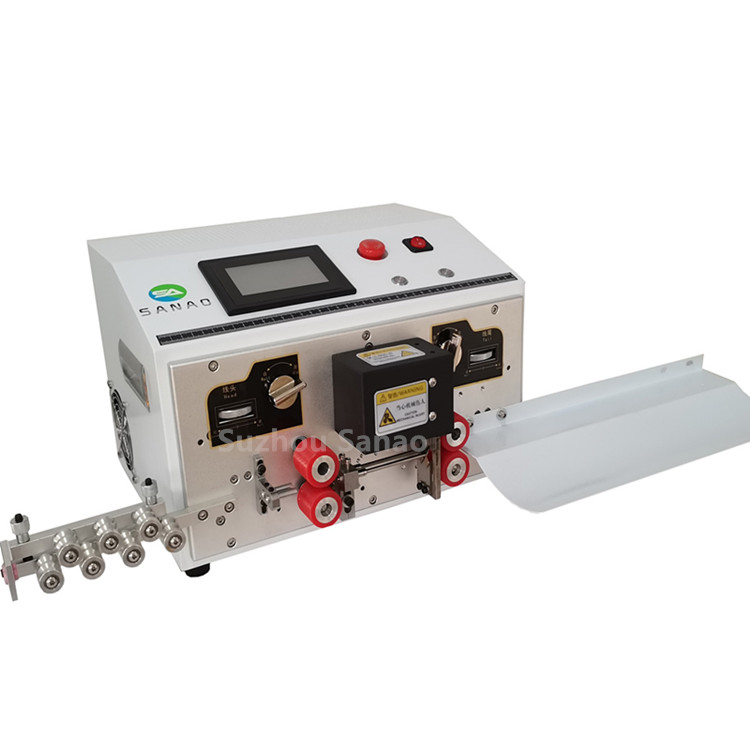

cable cutting and stripping machine for small cable

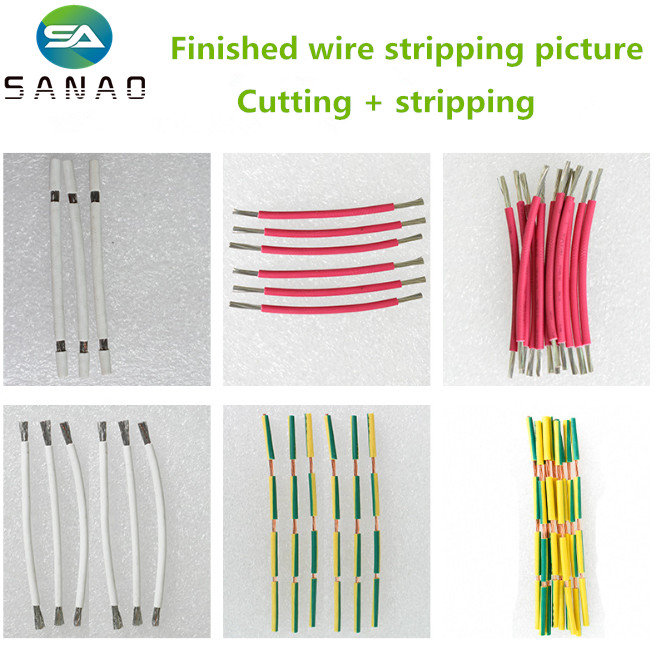

Stripping wire range: 0.1-6 mm²,Full automatic cut length and stripping both end,Widely used in wire harness processing industry for automotive electrical appliances, instrumentation,lamps, household appliances, It’s Greatly Improved stripping speed and save labour cost
Introduction:
1. It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.
2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,
4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
Model
SA-206F6
Cutting length
1mm-99999mm
Peeling length
Head 0.1-25mm Tail 0.1-25mm (According to the wire)
Applicable wire core area
0.1-6mm² (process 1 wire)
Productivity
3000-8000pcs/h(according to the cutting length)
Cutting Tolerance
0.002*L·MM
Outer diameter of catheter
4， 5 ，6 ，7，9 MM
Drive mode
Four wheel Drive
Stripping Mode
Long wire/ short wire /Multi-stripping / multi stripping
Dimension
400*300*330mm
Weight
27kg
Display method
Chinese or English interface display
Power supply
AC220/250V/50/60HZ
