Semi-Auto Wire Waterproof Sealing Station

  • Model:SA-FA300-1
  • Description: Wire Waterproof Sealing Station is used for inserting waterproof seal to wire end, adopt seal bowl smooth feeding the seal to wire end , It has high design precision mature technology. It can process almost all types of waterproof seal at high speed. Just need replace the corresponding rails for different sizes waterproof plugs,It is specially designed for automobile wire processing industry with
  • INQUIRY   EMAIL

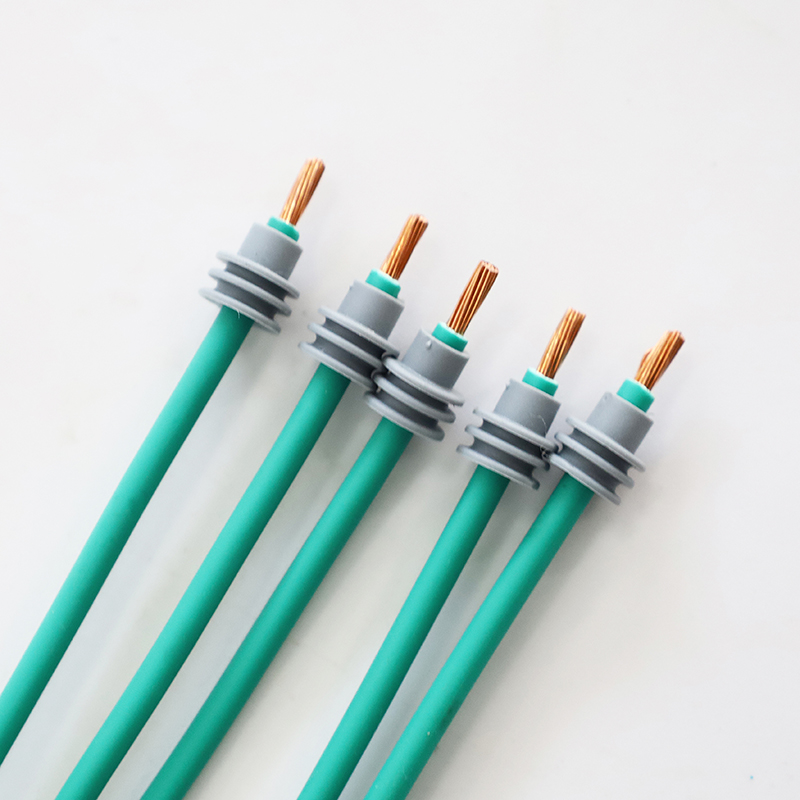

Wire Waterproof Sealing Station is used for inserting waterproof seal to wire end, adopt seal bowl smooth feeding the seal to wire end , It has high design precision mature technology. It can process almost all types of waterproof
seal at high speed. Just need replace the corresponding rails for different sizes waterproof plugs,It is specially designed for automobile wire processing industry with strict requirements.

1. The working speed is greatly improved
2. Just need replace the corresponding rails for different sizes waterproof plugs
3. PLC control to ensure high accuracy and enough inserting depth
4. It can automatically measured and displayed the fault
5. Hard shell waterproof plugs are available

Name

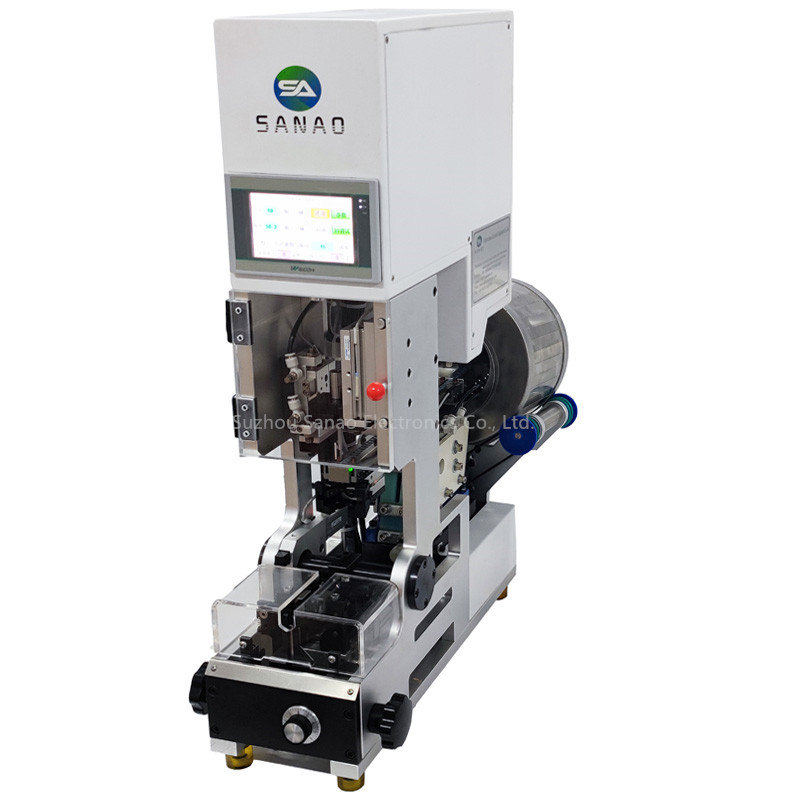

Semi-Auto waterproof seal plug inserting machine

Model

SA-FA300-1

Wire Seal Dia

φ14mm

Wire Seal Length

13mm

Production Rate

70pcs/min

Air Connection

0.5~0.7MPa

Power Supply

110/220VAC,50/60Hz

Power

50W

Weight

35kg

Dimensions

60*60*260mm
