0.1-4mm² Automatic 2 electric wire stripping and cutting machine

  • SA-206F4
  • Description: Processing wire range: 0.1-4mm², SA-206F4 Automatic small cable stripping machine for wire,Full automatic stripping and cutting double end at one time ,Widely used in wire harness. It’s Greatly Improved stripping speed and save labor cost.
  • INQUIRY   EMAIL

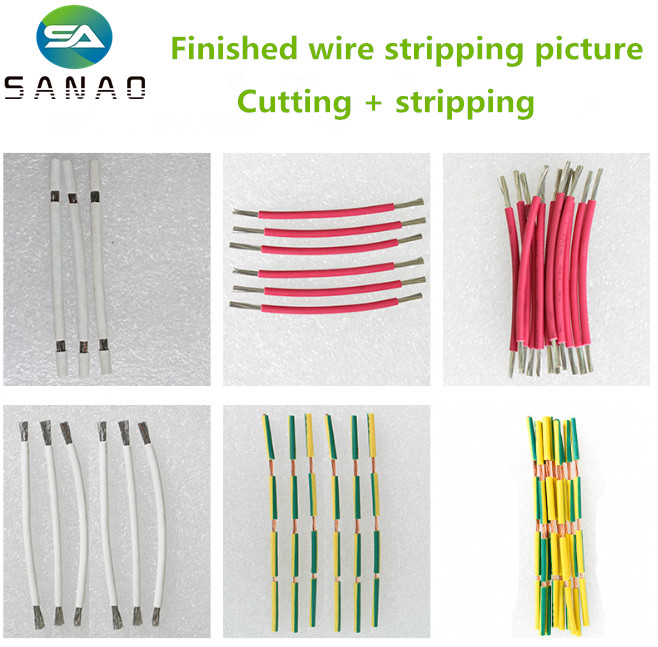

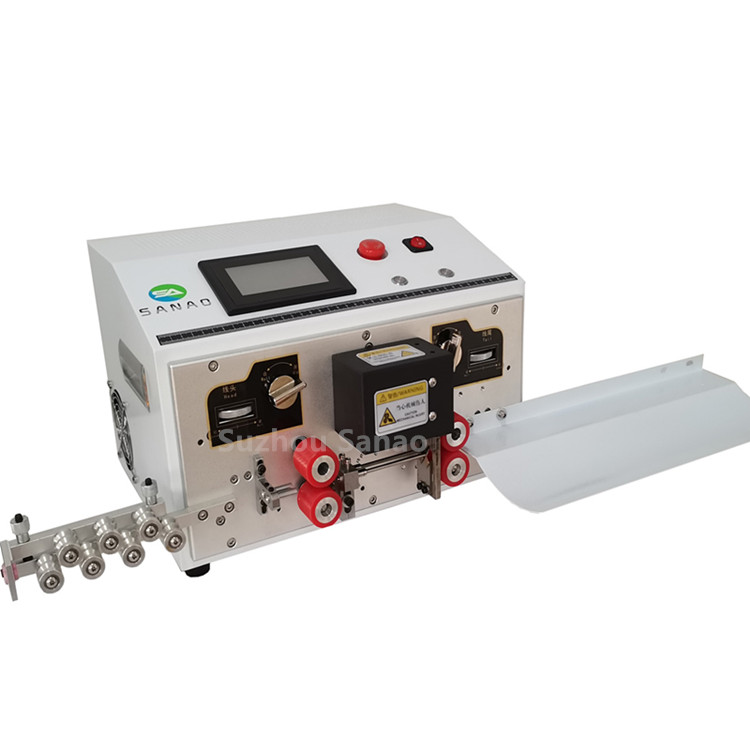

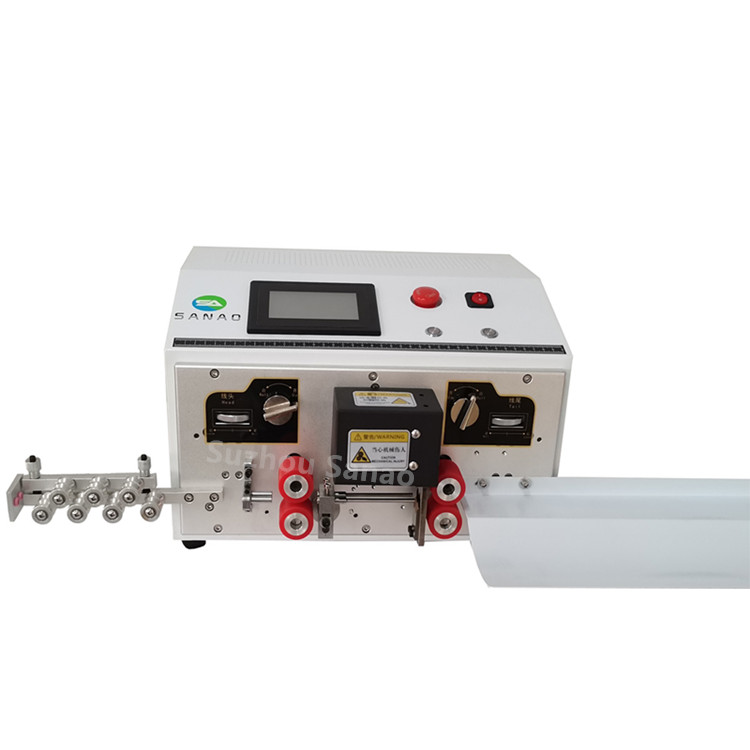

Processing wire range: 0.1-4mm², SA-206F4 is a small Automatic cable stripping machine for wire,It’s adopted Four wheel feeding and English display that it’s more Easier to operate than the keypad model, SA-206F4 can process 2 wire at one time ,It’s Greatly Improved stripping speed and save labor cost.Widely used in wire harness,Suitable for cutting and stripping electronic wires,PVC cables, Teflon cables, Silicone cables, glass fiber cables etc.


The machine is fully electric, and the stripping and cutting action are driven by stepping motor,not need additional air supply . However, we considering that the waste insulation  may fall onto the blade and affect the working accuracy. So we think It is necessary to add an air blowing function next to the blades, which can automatically clean the blades’s waste when connected to the air supply,This greatly improves the stripping effect.

Advantage :

1. English Color Screen: Easy to operate , Directly setting cutting length and stripping length .

2. High speed :Two cable processed at the same time;It’s Greatly Improved stripping speed and save labor cost .

3. Motor: Copper core stepper motor with high precision, low noise and longer service life.

4. Four-wheel driving: Machine is equipped with two sets of wheels as standard, rubber wheels and iron wheels. The rubber wheels can’t damage the wire, and the iron wheels are more durable.


Model

SA-206F4

SA-206F2.5

Cutting length

1mm-99999mm

1mm-99999mm

Peeling length

Head 0.1-25mm  Tail 0.1-100mm (According to the wire)

Head 0.1-25mm  Tail 0.1-80mm (According to the wire)

Applicable wire core area

0.1-4mm² (process 1 wire)                  0.1-2.5mm² (process 2 wire)

0.1-2.5mm² (process 1 wire) 0.1-1.5mm² (process 2 wire)

Productivity

3000-8000pcs/h(according to the cutting length)

3000-8000pcs/h(according to the cutting length)

Cutting Tolerance

0.002*L·MM

0.002*L·MM

Outer diameter of catheter

34 5 6 MM

34 5MM

Drive mode

Four wheel Drive

Four wheel Drive

Stripping Mode

Long wire/ short wire /Multi-stripping / multi stripping

Long wire/ short wire /Multi-stripping / multi stripping

Dimension

400*300*330mm

400*300*330mm

Weight

27kg

25kg

Display method

Chinese or English interface display

Chinese or English interface display

Power supply

AC220/250V/50/60HZ

AC220/250V/50/60HZ
