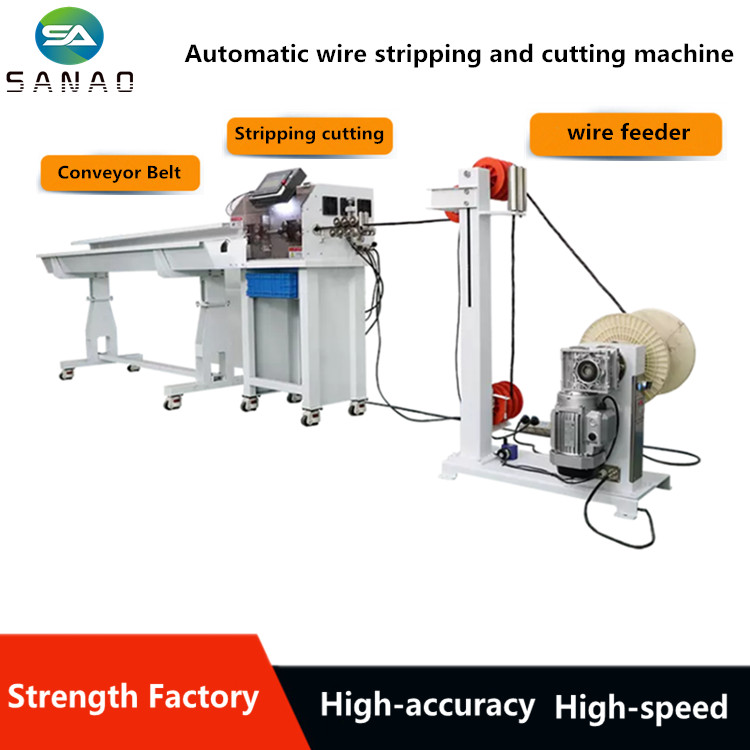

Full automatic Long Wire Cutting and Stripping Machine With Conveyor Belt

Long Wire Cutting and Stripping Machine With Conveyor Belt, Long Wire Stripping Machine with Wire Feeding Unit.
The SA-AH03 is designed for multi-cores cable full-automatic cutting and stripping both jacket and inner cores. It supports max 7 cores sheathed cable processing.Our machine Collection and integration,the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.Advantage:
* Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)
* Belt feeding wires, no embossing and scratches
* Fully automatic cutting and peeling wires and cables
* Being able to stripping outer skin and inner core skin of multi-core jacket cables simultaneously
* Head stripping: the sheathed wire completely falls off 10-120mm, the core wire completely falls off 1-120mm

* Tail stripping: the sheathed wire completely falls off 10-240mm, the core wire completely falls off 1-240MM

Model

SA-H03

Cutting Length

1-99999mm

Cutting Length Tolerances

≤(0.002*L) mm

Jacket Stripping Length

Head 10-120mm; Tail 10-240mm

Inner Core Stripping Length

Head 1-120mm; Tail 1-240mm

Conduit Diameter

Φ16mm

Production Rate

Single wire :2300pcs/h
Sheath wire :800pcs/h (base on wire and cutting length)

Display Screen

7 inch touch screen

Drive Method

16 wheels drive

Wire Feed Method

Belt feeding wire, no indentation on cable
